TLDR:
How do you size a universal air filter for your specific engine? This step-by-step guide by Gexhaust explains how to measure and choose the right racing air filters to boost your engine’s BHP and overall performance using simple air filter calculators and performance parts.
---

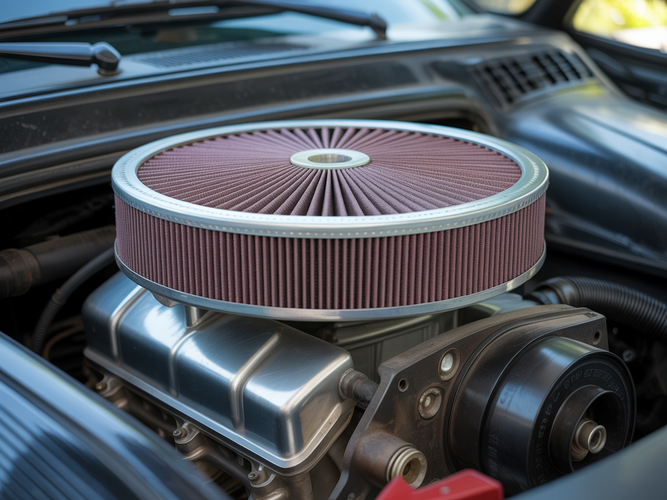

How to Size a Universal Air Filter for Your Engine: A Step-by-Step Guide by Gexhaust

Picking the right universal air filter matters a lot. It can help your engine run better. This guide will explain different air filter types and how to size them right.

Cone Filters vs. Flat Filters

Advantages and disadvantages of each type

Cone filters boost airflow a lot. That makes them good for high-performance engines. They usually have bigger surface areas than flat filters. But cone filters take up more space under the hood. Flat or panel filters fit tight inside factory airboxes. They are easier to put in and often require no changes.

• Cone filters need more room.
• Flat filters fit factory boxes.
• Cone filters let more air in.
• Flat filters are easier to install.

Applications for different engine types

• Universal cone filters work well with turbocharged engines. They handle the extra airflow those engines need.
• Supercharged engines also like these filters because of their high flow design.
• Flat filters suit engines that don’t have much room under the hood or use stock airboxes.

• Turbocharged engine filters often use cone shapes.
• Supercharged engine air filters benefit from higher airflow.
• Flat panel filters fit most regular engines.

Oiled Filters vs. Dry Filters

Performance characteristics

Oiled filters use cotton gauze that traps dirt well and lets lots of air through. They need cleaning and re-oiling now and then, but they filter better than dry types. Dry filters use synthetic media that works without needing much care but might not filter as well.

• Oiled vs dry air filters: oiled trap dirt better but need upkeep.
• Synthetic filter media makes dry filters low maintenance.
• Cotton gauze filters make oiled types effective.

Maintenance requirements

You must clean oiled filters regularly, usually every 30,000 miles or so. They need washing and re-oiling to keep working right. Dry filters are washable too, but many people just swap them out when dirty since they don’t need oiling.

• Washable air filters make maintenance easier.
• Oiled ones need both cleaning and reapplying oil.
• Dry filters may last longer without care but still get replaced.

Measuring Your Existing Air Filter

Taking accurate measurements

To get a good replacement, you must measure your current filter carefully:

1. Take out the old filter.
2. Measure length (L), width (W), and depth (D).
3. Check flange diameter if your filter has one.
4. Compare these numbers to new options using nominal vs actual air filter size.

Getting this right avoids fit problems and helps your engine breathe better.

Identifying Key Dimensions

The main sizes to know are:

• Air filter depth: how thick it is
• Flange diameter: size of opening it fits onto
• Clamp-on filters: check if your intake needs these before buying

Look for universal racing filters that match these specs so they fit snugly on your engine’s air intake system without leaks or gaps.

Follow these steps to pick a universal cone filter or rubber neck filter that works well with your boost and turbo air filters setup!

Calculating the Required Air Filter Area

Picking the right air filter size for your engine matters a lot. It keeps your engine running smooth and protects it from dirt and dust. Getting an accurate air filter measurement helps with good airflow and fuel use. This guide shows you how to measure your air filter right and figure out the needed area based on your engine specs.

Why you need to measure right:

• Keeps airflow steady
• Stops dirt from reaching engine parts
• Helps your engine use fuel better
• Fits the air filter properly

Using the Gexhaust Air Filter Calculator

The simplest way to find the right air filter size is by using the Gexhaust Air Filter Calculator. It guides you step-by-step:

• Input engine specs: Put in details like engine capacity (CC), horsepower (BHP), volumetric efficiency (VE), and peak power RPM.
• Calculate airflow rate: The calculator figures out how much air flows in cubic feet per minute (CFM). This shows how much air your engine needs every minute.
• Determine filter area: It tells you what surface area your air filter should have so air flows well without blockages.
• Pick matching filters: Use this info to choose a universal or specific-fit air filter that fits just right.

This tool helps you avoid filters that are too small or too big, which can cause problems.

Manual Calculation Method

If you want, you can also calculate by hand. Here’s a simple formula:

λRequired CFM = (Engine Displacement (cubic inches) × Peak RPM × Volumetric Efficiency) / 3456

Let’s break it down:

• Engine displacement means the size of your engine, often in cubic inches (CC can be changed to this).
• Peak RPM means the speed where your engine makes max power.
• Volumetric efficiency shows how well the engine fills with air — usually between 0.8 and 1 for normal engines.

After finding CFM, divide it by face velocity to get filter area needed.

Face velocity usually runs from 300 to 500 feet per minute depending on filter type.

Example:

Suppose you have a 2000 CC engine running at 6000 RPM with a VE of 90%:

1. Change CC to cubic inches: 2000 / 16.387 = 122 ci
2. Calculate CFM:
         (122 × 6000 × 0.9) / 3456 ≈ about 190 CFUM
3. If face velocity is 400 FPM:
         Required Area = 190 / 400 = 0.475 sq.ft. (about 68 square inches)

This tells you what surface area your filter should have to let enough air through without making it hard for your engine to breathe.

Getting the size right helps your engine work better, lasts longer, and fits well no matter what setup you have. This way, picking an air filter gets less confusing and more spot-on!

Carburetor Engines

Picking the right air filter size for carburetor engines really matters. The filter has to fit the carburettor’s intake well. If it doesn’t, airflow gets blocked. That causes bad combustion and can damage your engine.

Carburettor air filters stop dirt and dust from getting inside. They also keep air flowing smoothly. Choosing the right intake air filter helps keep carb jetting adjustment steady. That means the fuel-to-air mix stays balanced. Your engine runs better, and throttle response improves.

To get good airflow, find a filter made for your carburettor or one that’s universal with adjustable sizing. A filter must clean the air without slowing it down too much. This keeps your engine safe and helps it make more power.

• Match universal air filter sizing to your carburettor’s intake
• Use carburettor air filters to block debris and keep airflow smooth
• Proper intake air filter selection supports carb jetting adjustment
• Correct air filter size prevents engine damage
• Optimize airflow for better performance

Fuel-Injected Engines

Fuel-injected engines need special filters like throttle body filters or fuel injection air filters. These must work with mass airflow sensor compatibility. Sensors check how much air comes in, so clean air is a must. Dirty filters can mess up sensor readings and hurt engine performance.

Throttle body filters are usually easy to install. They provide reliable protection by keeping dirt out of the fuel injection system. Clean airflow helps engines run smoother and boosts fuel efficiency.

When you pick a fuel injection-compatible air filter, go for one built to last and fit well with sensors. This way, you avoid problems and keep horsepower steady.

• Use air filter for throttle body or fuel injection systems
• Make sure filters work with mass airflow sensor compatibility
• Choose reliable protection with effective filtration
• Look for easy to install options
• Better filtration means enhanced engine performance

Turbocharged Engines

Turbocharged engines need boost and turbo air filters made for high airflow under pressure. High flow air filters let lots of air in without cutting filtration quality. This helps turbochargers work right.

Turbocharged engine filters come as performance tuning parts that raise power output by lowering restriction at high boost levels. They trap fine dust created during tough engine runs too.

Pick durable turbocharged filters rated for forced induction systems only. They protect important parts while helping the engine keep strong power delivery.

• Choose boost and turbo air filters for max airflow
• Use turbocharged engine filters designed for high pressure
• High flow air filters balance volume with filtration
• Performance tuning parts improve power output
• Durable filter traps fine particles to protect your engine

Check out our range of universal fit air filters that work on many engines, including carbureted ones, or look at specific cold-air intakes made to help your vehicle breathe better without wasting airflow.

Air Filter Replacement and Maintenance

Taking care of your air filter keeps your engine running well. Cleaning, servicing, and changing it on time stop dust and dirt from harming the engine. It also helps air flow freely for better performance.

Cleaning and Servicing Your Air Filter

Cleaning your air filter often makes it work better and last longer. If you have reusable or washable air filters, you should clean out dirt gently. Use water or special cleaners so you don’t hurt the filter media.

Some filters need a filter oiling process after washing. This helps catch tiny particles well. Oiled air filters trap more dust than dry ones but too much oil can cause problems with sensors in newer engines. Dry air filters don’t need oil but might not catch as many particles.

Here’s what you should know about filter types:

• Synthetic filter media is tough and easy to clean.
• Cotton gauze filters let air pass well and catch particles if oiled right.

Check your filter often for dirt buildup. This keeps its filtration efficiency rating high, which protects your engine from harmful stuff entering the combustion area.

When to Replace Your Air Filter

Knowing when to change your air filter saves your engine from damage caused by lots of dust.

Follow these tips:

• Change the filter every 12,000 to 15,000 miles if you drive normally.
• Replace it more often if you drive on dusty roads or rough places.
• Watch for signs like lower gas mileage, strange engine noises, or visible dirt blocking the filter.

Changing the filter at the right time keeps dust and dirt out while letting air flow smoothly for better burning of fuel. You can find good parts like universal fit air filters that fit many engines well.

For easier care, try washable reusable air filters. They save money since you clean them instead of buying new ones all the time.

Keep your car’s power up by cleaning and replacing your universal air filter as needed. Doing this stops dirt from hurting the engine while helping it run smooth every time you drive.

Frequently Asked Questions

How do I determine my engine's peak horsepower and RPM?

To find your engine’s peak horsepower and RPM, start by checking the manufacturer’s specs or try a dynamometer test. Peak power RPM means the engine speed where horsepower hits its max. This info helps pick an air filter that fits your engine power needs and airflow rate. Good tuning makes sure the air filter lets enough air flow, especially near redline RPM. That way, your engine runs better without choking on air.

What is the difference between nominal and actual filter size?

Nominal size is just a general label for air filters. Actual size shows the exact length, width, and height of the filter. You need the actual size to get a proper fit in your intake system. Using only nominal sizes can cause leaks or bad seals. Always check the real air filter dimensions before buying so it fits your vehicle well.

How do I know if my filter is the right size for my engine?

The right air filter fits snugly with no gaps or pressure drops. A good fit keeps dirt out and lets enough air through for good combustion. To be sure, measure your engine’s intake opening and compare it with product specs from trusted sellers like Gexhaust’s universal fit air filters. A perfect fit keeps your engine safe and running strong.

Can I use a larger air filter than the factory recommended size?

You can sometimes use a bigger-than-factory air filter to let more air flow and cut down restriction. This helps high-performance engines that need extra oxygen at higher RPMs. But bigger isn’t always better; too large filters might not seal right or mess with sensors in some cars. You need to balance better airflow with good filtration and proper installation space.

How often should I replace my air filter?

Air filters usually need replacing every 12,000 to 15,000 miles under normal driving. If you drive in dusty or rough places, change it more often to keep airflow clean and protect your engine parts. Check your filter regularly to see if it needs cleaning or replacing. Keeping a clean filter makes maintenance easy and helps your engine last longer.

Conclusion: Upgrade Your Ride with the Perfect Universal Air Filter

Picking the right universal air filter can boost your engine’s performance. Gexhaust offers filters that last long and block dirt well. They help your engine run cleaner and stronger.

Our easy guide and calculator show you how to find the right size for your engine. This gives good airflow while keeping dirt out. Both things help your engine work better and live longer.

If you want advice, our team knows what to do. Whether you’re a hobbyist or a pro mechanic, we give clear help and solid support. That way, you can feel sure about your choice.

Shopping is easy here, with safe checkout and a promise you'll be happy. Change your ride today with a universal air filter that stands up to miles of use.

Check out our air filters universal fit collection now to find the one for you!

Frequently Asked Questions (FAQs)

What is the impact of filter restriction on engine power?
Filter restriction lowers airflow. Reduced airflow cuts engine power and throttle response. A proper air filter minimizes restriction to maximize horsepower.

How does air filter fitment affect engine health?
Correct air filter fit stops dirt and debris from entering the engine. A poor fit causes leaks, allowing contaminants inside that can damage parts.

Which filter media type offers the best filtration efficiency?
Cotton gauze filters with oiling offer superior filtration but need maintenance. Synthetic media provide reliable protection with low upkeep.

Can reusable air filters save money on maintenance?
Yes. Reusable washable filters reduce replacement costs. They clean easily and maintain airflow over long use.

Why is airflow optimization crucial for performance air filters?
Optimized airflow balances maximum air intake and filtration. This ensures peak combustion and protects engine components.

How do cold air intake benefits improve engine breathing?
Cold air intakes bring cooler, denser air into the engine. This increases combustion efficiency and improves power output.

What role do clamp-on filters play in custom intake setups?
Clamp-on filters allow secure mounting on various pipe sizes. They support custom systems by offering flexible fitment options.

How often should I check for filter clogging symptoms?
Check filters every 10,000 miles or sooner in dusty conditions. Clogging reduces airflow, hurting fuel economy and engine health.

Key Points for Choosing the Best Universal Air Filter

• Ensure a suitable fit with correct air filter dimensions to avoid leaks.
• Choose premium quality filter media for reliable filtration and durability.
• Opt for breathable filters that maintain optimum airflow without restriction.
• Select filters compatible with your engine air intake system and sensors.
• Prioritize easy maintenance with washable or reusable filter options.
• Consider performance air filter selection based on horsepower and tuning needs.
• Use trusted guidance from expert technicians or knowledgeable teams like Gexhaust.
• Check compatibility with aftermarket parts such as cold air intakes or induction kits.
• Account for engine bay heat shielding when choosing filter placement to reduce intake temperature.
• Follow recommended air filter replacement intervals to protect engine longevity.
